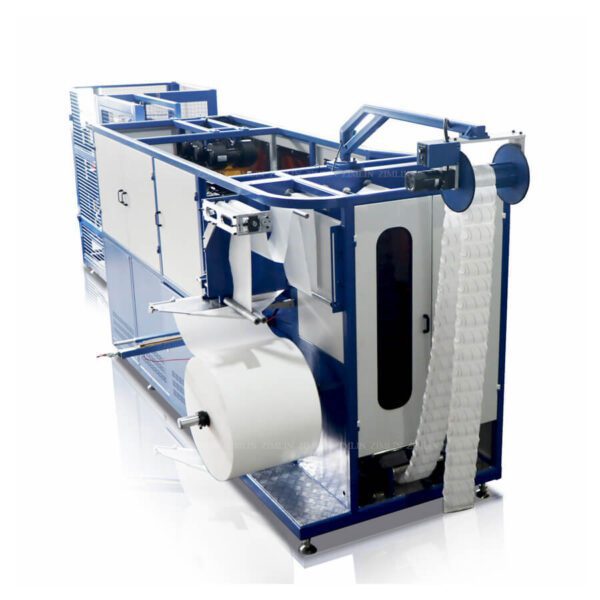

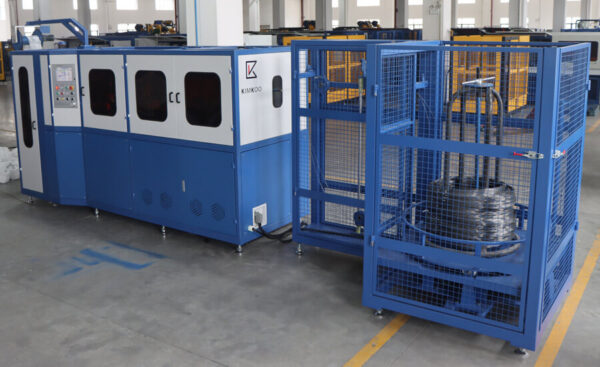

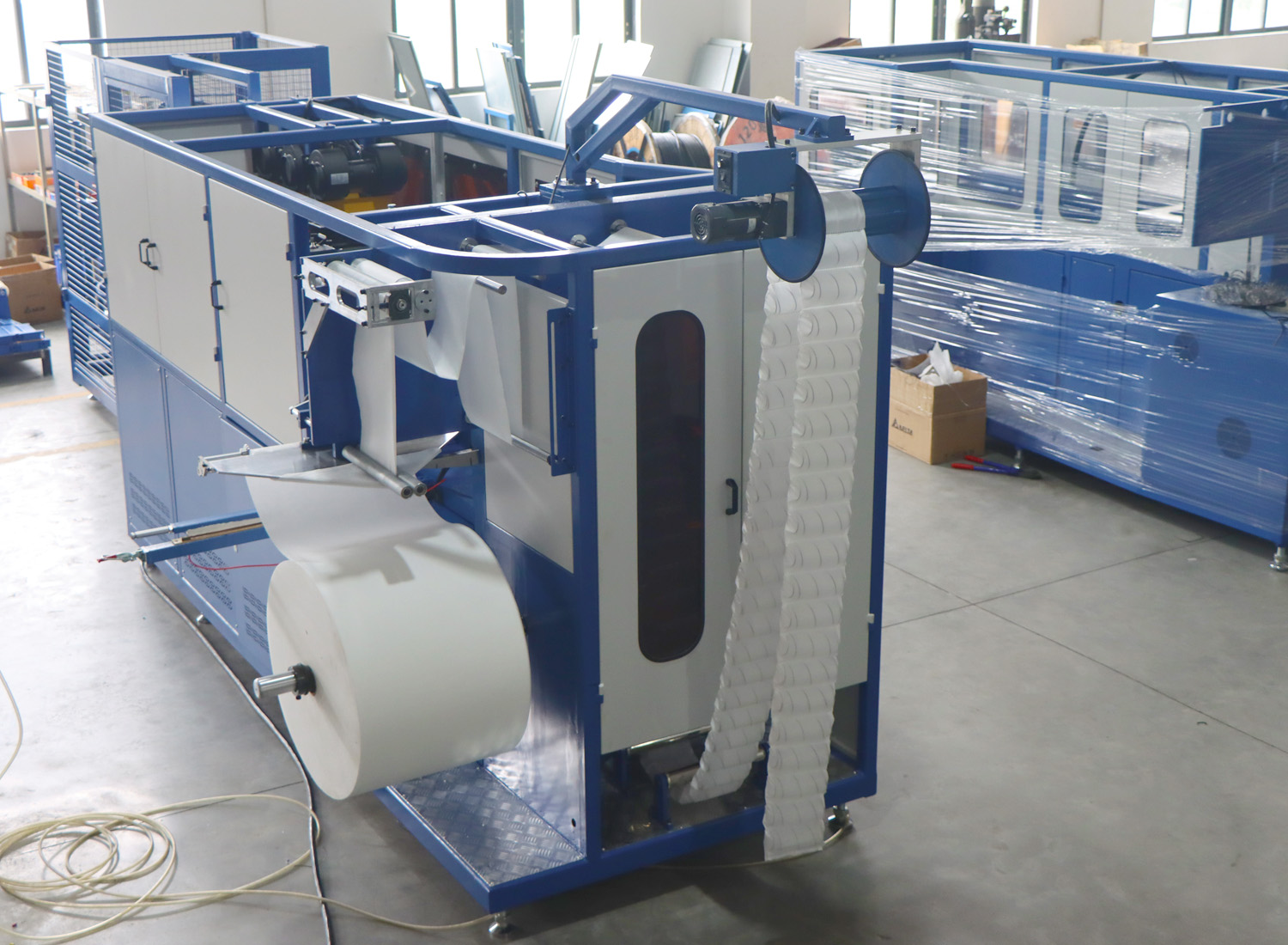

This JK-PS-100 automatic mattress pocket spring machine is mainly used to manufacture mattress pocket spring or sofa cushion springs. And we have more than ten years of production experience and technology. In addtion, this JK-PS 100 is developed through continuous improvement and research. With High performance, high efficiency and high stability these characteristics.
This mattress packet spring machine is a special design for production pocket spring. It can automatic comple the winding, heat treatment, conveying and bag forming etc.
Mattress Pocket Spring Machine Features
- 1. Microcomputer control system.
- 2. Automatic counting spring function.
- 3. High precision and no-cylinder devices ensure materials saving. And it can saving labor and energr.
- 5. Spring compression and delivery by servo control, simple and accurate action.
- 6. Springs making are all Servo control, convenient adjustment.
- 7. Automatic counting in system. Record daily production output automatically.
- 8. It produces good shape center-welded pocket springs with small mid-coil diameter.
- 9. This pockett spring machine with self-developed control system, ultrasonic welding, low noise, no pollotion.
Automatic Pocket Spring Machine Paramenters
| Productivity | 85spring/min |
| Mechanical | All mechanical drive |
| Torsion machine | Torsion machine Two-axis numerical control torsion machine head |
| Shape of spring | Straight spring and drum-type spring |
| Total Power | 30KW |
| Input voltage | 3AC380V |
| Input Current | 75A |
| Frequency | 50/60Hz |
| Input Cable | 50×10mm² |
| Weight | 2600KG |
| Thickness of non-woven fabric | 50-90g/m² |
| Width of non-woven fabric | 300-580mm (Standard spring machinery) 380-720mm (High spring machine) |
| Diameter of steel wire | Ø1.6-Ø2.4mm |
| Diameter of spring core | Ø60-Ø75mm |
| Spring height | 70-200mm (Standard spring machine ) 140-280mm (High spring machine) |
| Size lenght | 3.9 m, width 1.75 m, height 1.5 |
