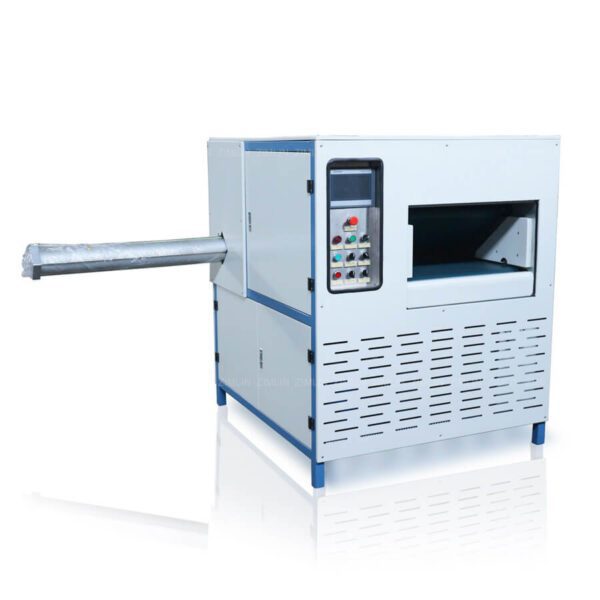

This pillow roll packing machine is special design for the pillows. It can roll all kinds of pillow, such as latex foam pillow, foam pillow and the memory foam pillow. The rolled pillow can be packed in a box or packed with the rolled mattress in a box. It is easy to operate and cost saving.
Pillow Roll Packing Machine Features
- 1.Easy to operate, only need one worker to operate.
- 2.High effective 10Seconds/Pcs.
- 3.Stable and small, so it doesn‘t waste factory space.
- 4.Safe and populared. (Now,Pillow roll packing is popular in China. Like xiaomi pillow packing way. Details see the pictures)
- 5.Stable and durable machine with PLC Control system.
- 6. Accept customer made. Besides that, this machine can be connected into packing line.
- 7. Thicker stainless steel as a mechanical structure and paint process.

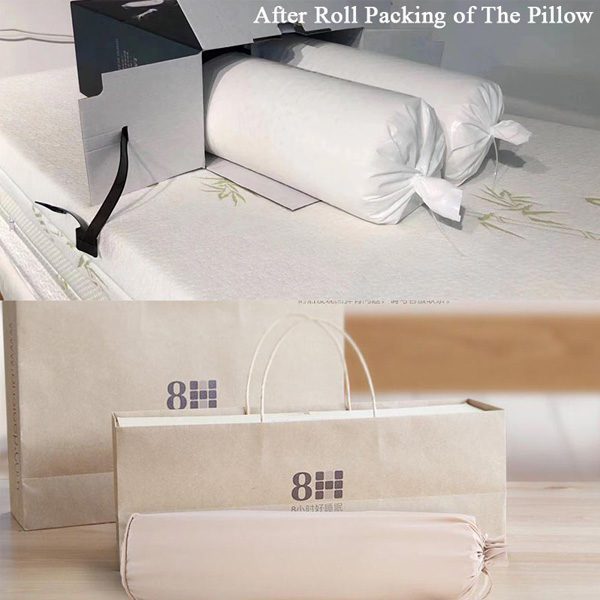

Pillow in a box is a very popular pillow packaging way for electric commerce and retail. Pillow must use pillow roll packing machine to wrapping the pillow. Then can be able to placed in box to packaged.
This machine with highly automation which replace the traditional technics. Makes the pillow packaging more beautiful and higher productive. The most important that this pillow machine can help you save the high labor costs.
Pillow Roll Packing Machine Paramenters
| Name | Pillow roll packing machine |
| Conveyor width | 700mm |
| Conveyor speed | 24m/min |

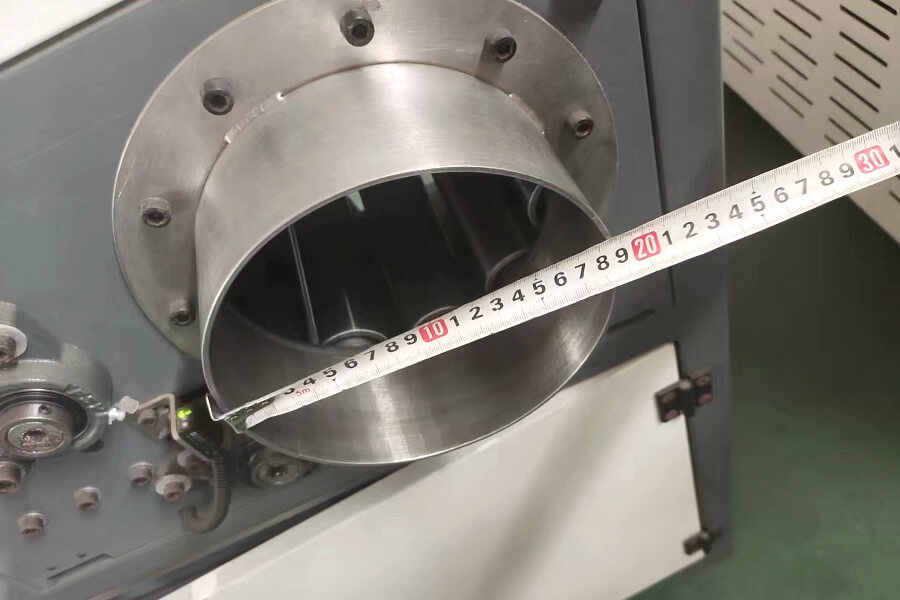

| Exit diameter | 160mm (can adjustable) |
| Pillow rolling size | length≤900mm,width:600mm |
| Total power | 3KW |
| Rolling efficiency | 10pcs/min |
| Voltage | 380V/50HZ |
| Dimensions | 1400*2000*1300mm |
| Weight | 300KG |
