Description

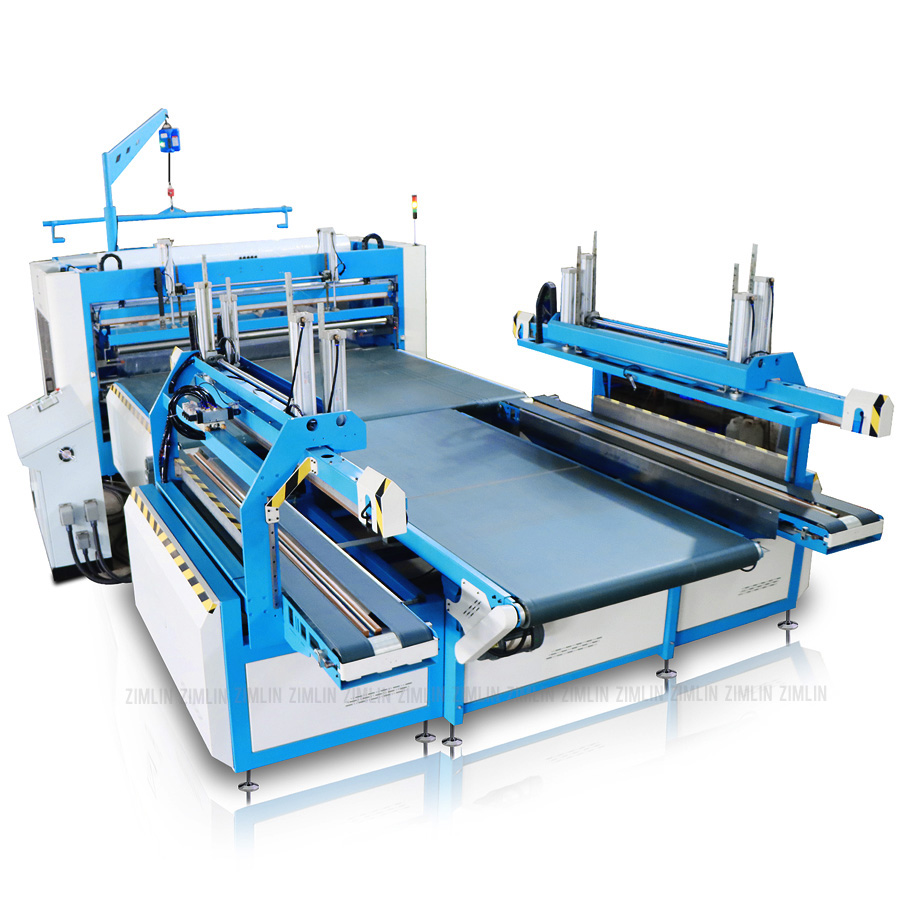

This machine is mainly used for packing all kinds of different mattresses. It‘s normally packing (Use PE Film to pack ). And the max effective of the machine is 30 S/PCS, So it is widely use in the auto mattress packing line. In addition, this machine uses PE film to pack the mattress. After heat sealing, the mattress will be sealed in a PE bag. This will prevent dust and protect the mattress. In addition, the device for printing logo on PE Film can also be added.
Automatic mattress film packaging machine with the ability for automatic packing and heat sealing function. Also, it can help the manufacture to reduce the cost of the labour and the packing cost.
In addition, this machine with high production efficiency, training period is short, easy to operate. Film packaging a mattress whole process just needs 30 seconds. More importantly, the film packaging mattress not only beautiful appearance. But also easy to be disassembly maintenance and transportation.
Features
- 1. PLC control system and Siemens accessories to make machine more stable and durable.
- 2. High effective machine, 30s/pcs. In addition, this machine can connect into the auto mattress packing line.
- 3. Use the PE Film the pack the mattress, mores environmental protection. And you can consider to print your logo on the PE film also, good looking.
- 4. This machine accept customized.
- 5. Able work on mattresses with different dimensions.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | JK-F2 |
| Application | Mattress film package(Mattress Bagging) |
| Effective | 2 pcs/min |
| Mattress Width | 800-2200mm |
| Mattress Length | 1800-2100 |
| Mattress Height | 100-450mm |
| packing speed | 30s/PCS |
| PE film width | ≤2700mm |
| Air pressure | 0.8MPa,0.78m3/hour |
| Voltage | 380V/50 HZ |
| Power | 16 kw |
| Dimension | 8000*3500*1900mm |
| Weight | 4800 kg |
