Description

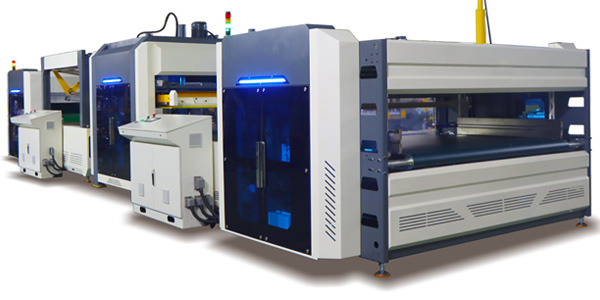

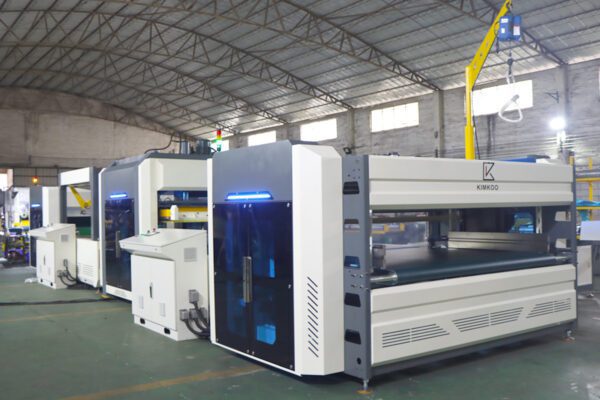

The automatic mattress packing machine efficiently handles mattress packaging with functions like auto bagging, compression, sealing,folding, and roll-packing, ensuring a streamlined and professional packaging process.
The entire packaging process takes only 45 seconds, significantly enhancing the visual appeal of mattress packaging while saving on labor, storage, and transportation costs. Post roll-packing, the mattress volume is substantially reduced, leading to significant savings in shipping costs. ZIMLIN’s innovative solution achieves the ‘pack mattress in a box’ format, ideal for shipping, e-commerce, and retail distribution.
Six Packaging Mattress Functions
- Auto Bagging: Use PE/PVC film as packaging material for automatically bagging mattresses.
- Compression: It compresses the mattress into a 9:1 proportion flat-shape, optimizing space and reducing volume for easier handling.
- Heat Sealing: Equipped with heat seal bars, the machine creates a robust seal across each package, guaranteeing durability and protection.
- Folding Option: The machine offers a folding option to create smaller package dimensions, enhancing storage and transportation efficiency.
- Roll Packing: The intelligent roll-pack system automatically adjusts the package diameter according to the mattress’s thickness and length, forming a cylindrical package. Users can also input a range of caliber values in the PLC control system for precise control.
Features
- 1. Multifunction: Integrates auto bagging, compression, heat sealing, folding, and roll packaging.
- 2. Swift Operation: Ensures rapid packaging with a speed of 45 seconds per mattress.

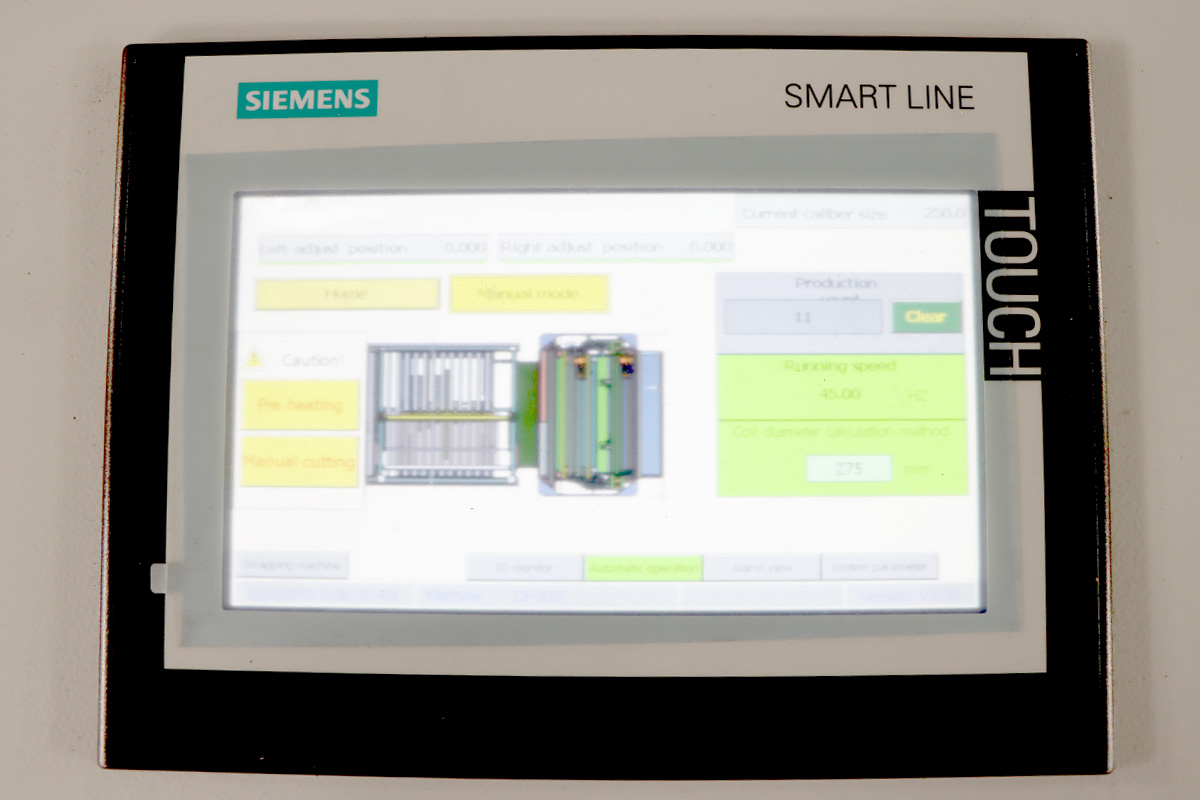

- 3. Advanced Control System: Utilizes a PLC and touch screen control system with SIEMENS accessories for precision and reliability.
- 4. Multi-Lingual Interface: Supports multiple languages (English, Spanish, Italian, French, and more) for seamless operation.
- 5. Ease of Operation: Designed for simplicity, making it accessible to a wide range of users.
- 6. Comprehensive Support: Provides installation videos and manuals for easy setup and efficient operation.
- 7. Customization Options: Accommodates customization requests to meet diverse needs.
- 8. Stability and Durability: Built for long-term performance, ensuring stability and reliability in every operation.
ZIMLIN’s automatic mattress packing machine is an epitome of efficiency, cost-effectiveness, and advanced technology, making it a perfect solution for the modern packaging needs of the mattress industry.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | JK-R2B |
| Packaging Efficiency | 45s/mattress |
| Packing Diameter | 230-450mm(adjustable) |
| Max Pressure | 60 tons |
| Size of Pressure Plate | 2100mm × 2200mm |
| Control System | PLC |
| Air Requipment | 0.3m³/min 0.8MPa |
| Power | 22KW |
| Voltage | 3-Phase, 380V, 50HZ (Accept customization) |
| Weight | 8000KG |
| Dimension | 1300mm × 3600mm × 2500mm |
