Description

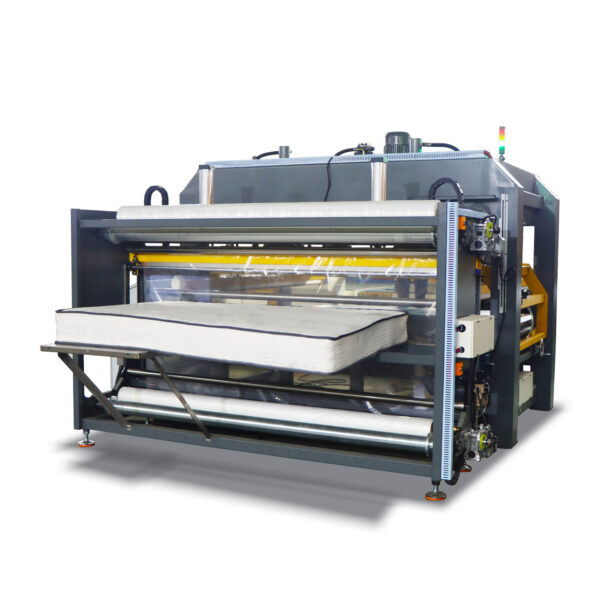

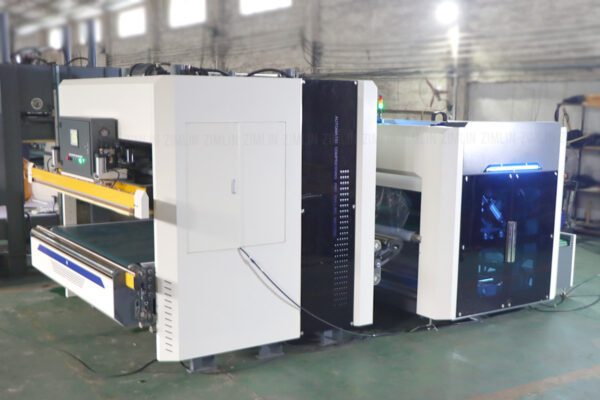

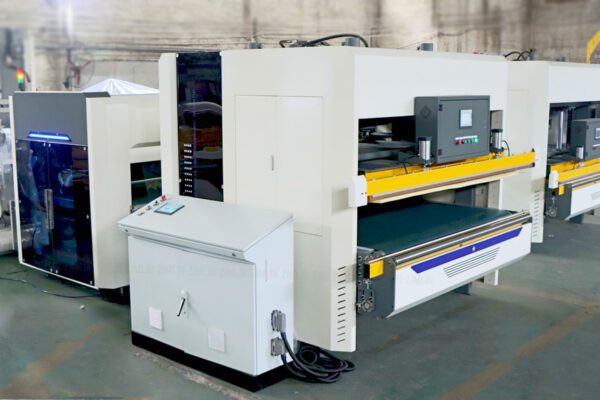

Our state-of-the-art mattress compression packing machine is designed to efficiently compress and roll pack mattresses into a compact cylindrical package. The entire process takes only 35 seconds, enhancing the visual appeal of mattress packaging while significantly reducing labor, storage, and transportation costs. This machine is perfect for achieving the ‘pack mattress in a box’ format, making it ideal for shipping, e-commerce, and retail distribution.
Key Functions
- Compression and Heat Seal: The machine compresses the mattress into a flat shape with a 9:1 ratio. The heat sealing bar robustly seals the bag mouth, ensuring the packaging material, typically PE/PVC film bags, covers the entire mattress.
- Roll Packing: Our intelligent roll-packing system automatically adjusts to the mattress’s thickness and length, creating an appropriately sized cylindrical package. The PLC control system allows input of a reasonable range of caliber values for precise packaging.
Features
- 1. Swift Operation: Ensures rapid packaging with a speed of 35 seconds per mattress.
- 2. Multi-Lingual Interface: The user-friendly interface supports multiple languages (English, Spanish, Italian, French, and more), ensuring seamless operation.
- 3. Advanced Control System: Utilizes a PLC and touch screen control system with SIEMENS accessories for precise control.
- 4. Comprehensive Support: Provides installation videos and manuals for easy setup and efficient operation, with the option for on-site installation.
- 5. Customization Options: Accommodates customization requests to meet diverse needs.
- 6. Stability and Durability: Built for long-term performance, ensuring stability and reliability in every operation.
By integrating the mattress compression machine, you will streamline your packaging process, enhance efficiency, and ensure your mattresses are securely packaged for any distribution channel.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | JK-C1B |
| Effective | 35s/mattress |
| Packing Diameter | 230mm - 450mm(adjustable) |
| Size of Pressure Plate | 2100×2200mm |
| Compression Max Pressure | 60 tons |
| Control System | PLC |
| Max Packaging Mattress Size | 2200mm×2200mm×450mm |
| Air Requipment | 0.3m³/min 0.8MPa |
| Total Power | 28.7KW |
| Voltage | 3-Phase, 380V, 50HZ (Accept customization) |
| Machine weight | 7200kg |
| Machine Diemension | 5500mm×3300mm×2500mm |
