Description

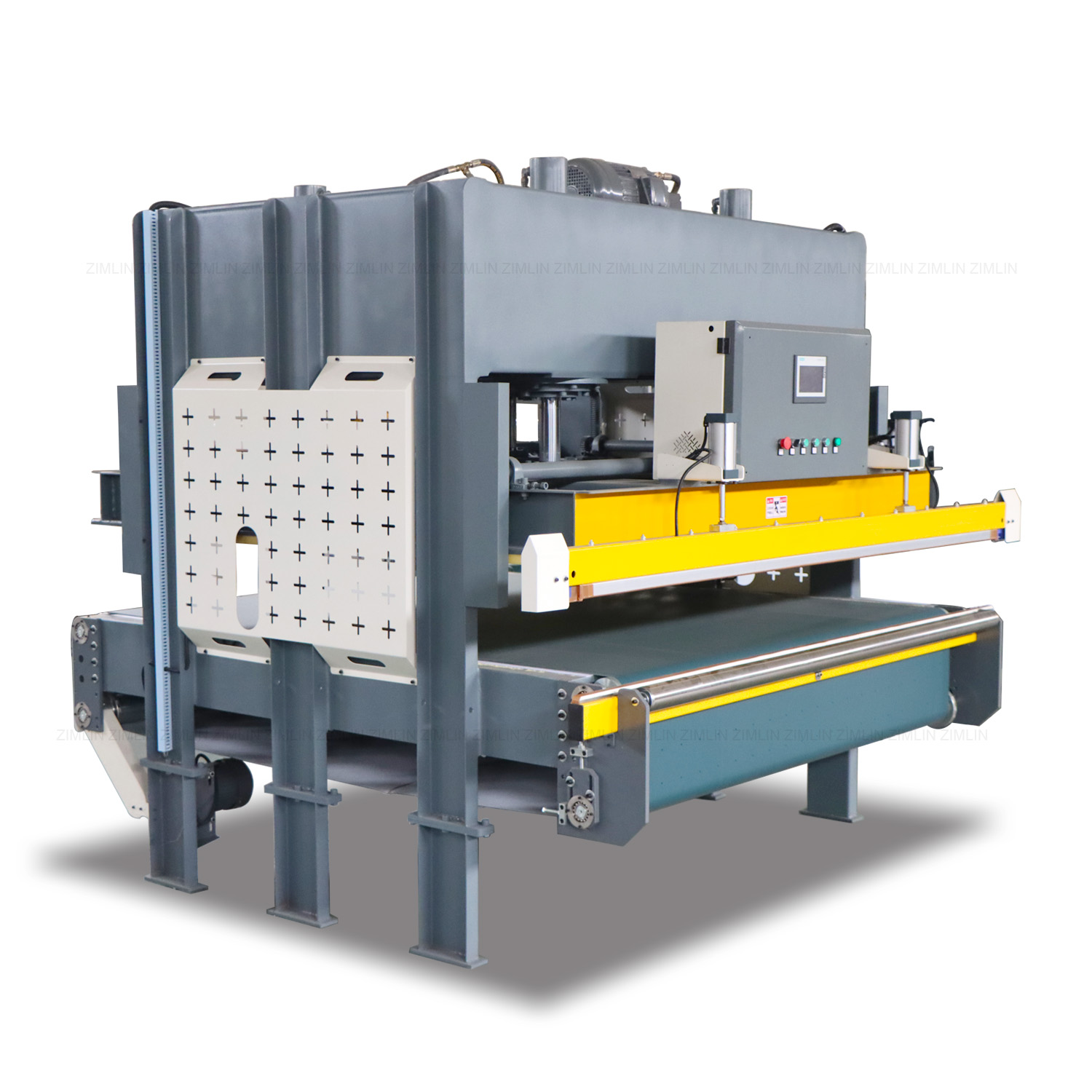

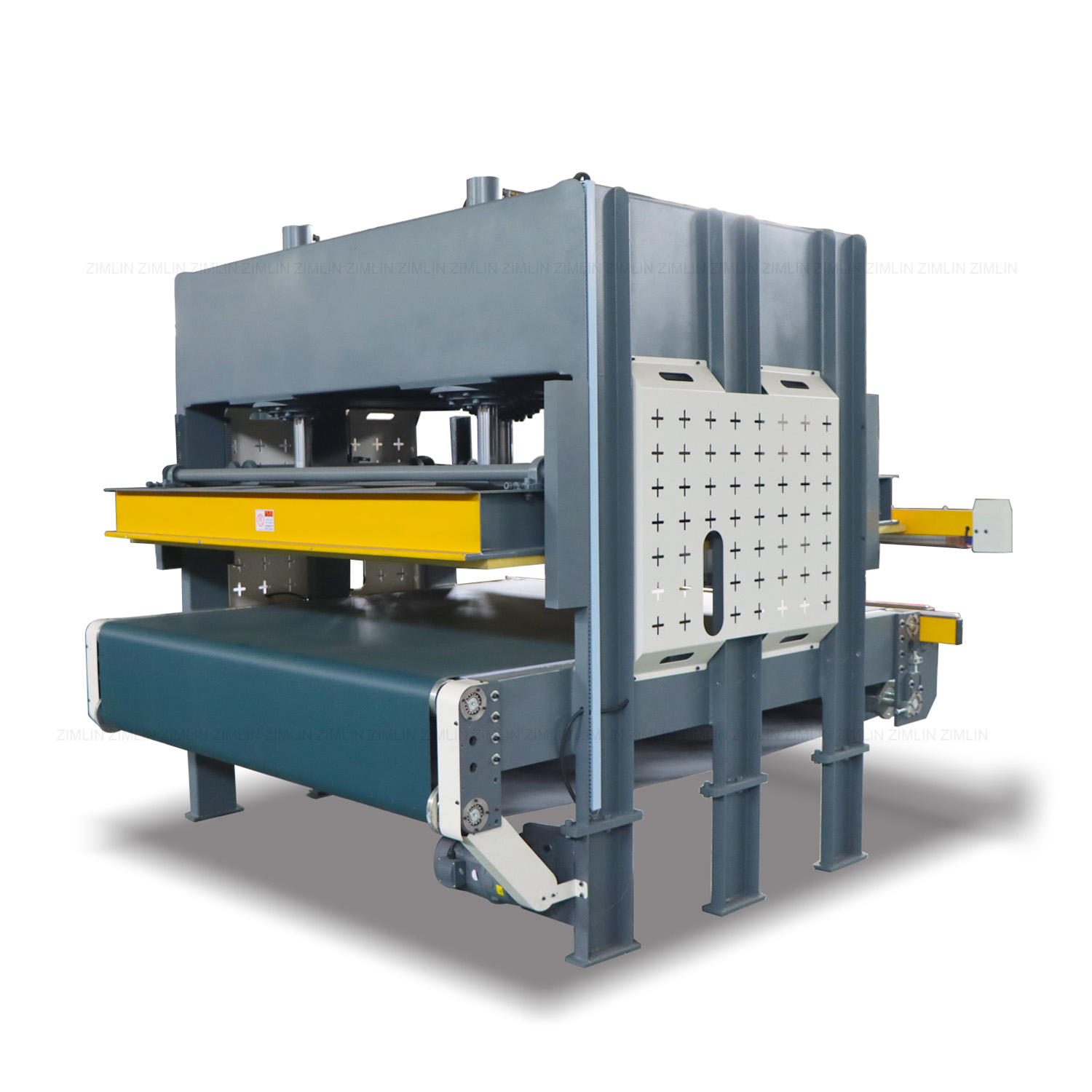

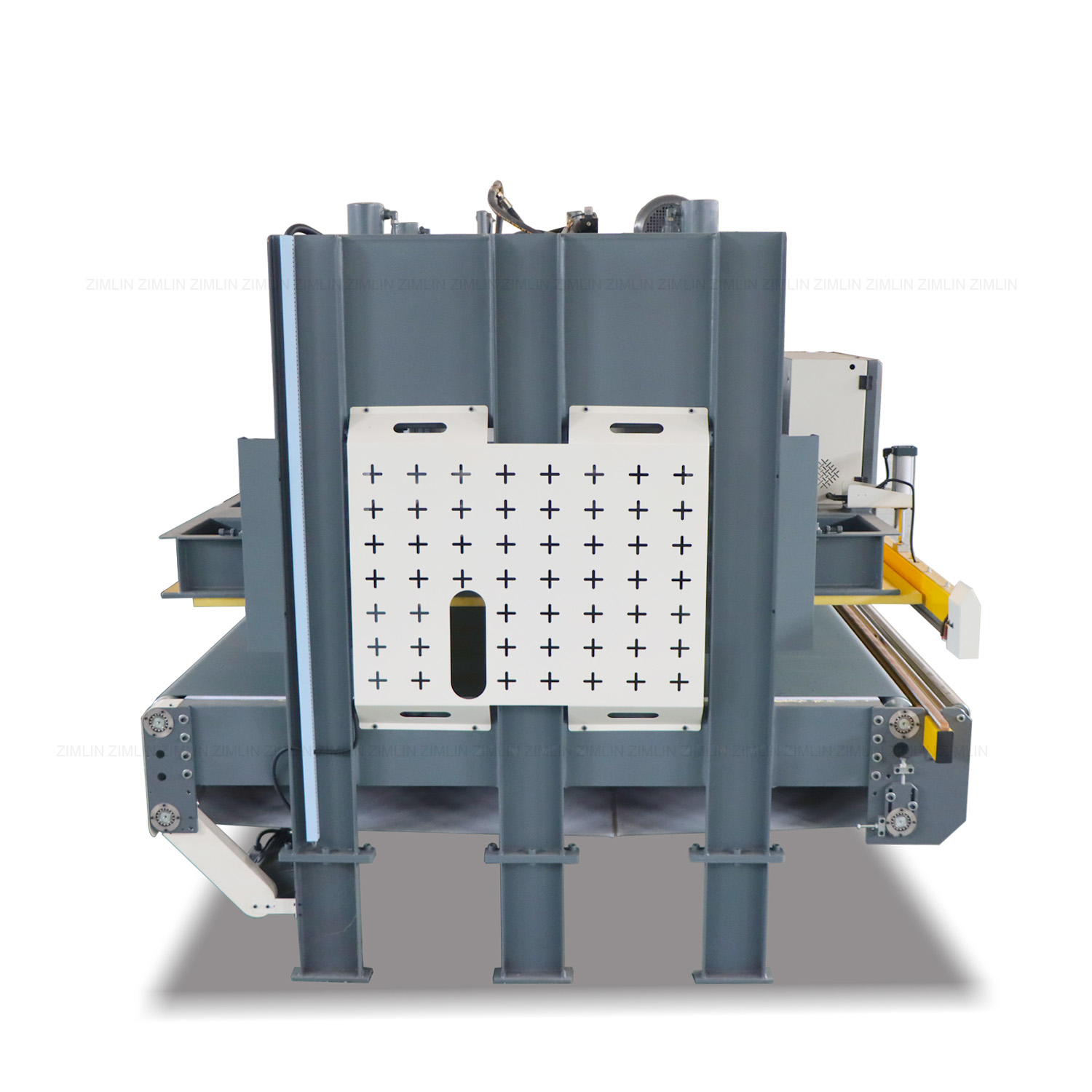

This is the newest and most advanced machine in “C” series. Unlike other machines, it’s a fully automatic mattress compression machine. The machine requires manual bagging mattress, and the machine has a conveyor belt, which means you can connect with production line. If you need auto-bagging function, maybe you need a mattress folding machine with auto bagging, folding, compressing and roll packing functions ect.
Automatic Mattress Compression Machine Features
- 1. Design with automatic series, only need 2 workers to operate. And this machine is characterized can be connected with the automatic packing line.
- 2. The whole mattress compression process takes about 35s
- 3. This mattress compression machine use PLC control system and the SIEMENS accessories, effective, stable and durable.
- 4. Perfect seal of film provides more security in storage and delivery.
- 5. Compress mattress into a flat pack.

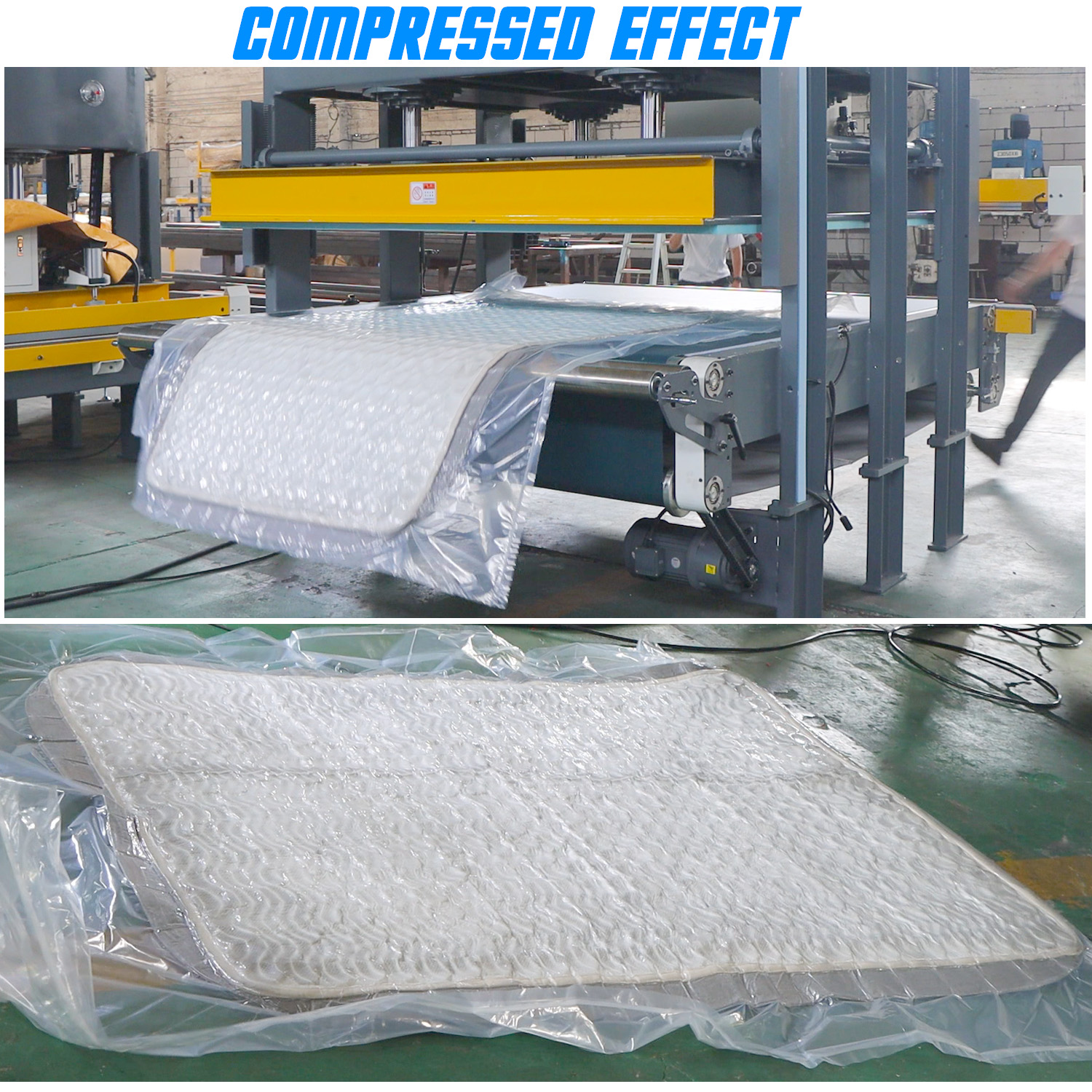

- 6. 9:1 Proportion mattress compress before and after Compare.
- 7. Protect the integrity of your product with not hurt the mattress.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | JK-C4 |
| Number of air cylinder | 6 pcs |
| Number of conveyer belt | 1 pcs |
| Oil pressure power | 7.5kw |
| Heating power | 3kw |
| Pumped power | 2.2kw |
| Transmission power | 0.75kw |
| Working pressure | 50T |
| Number of oil cylinder | 4pcs |
| Distance of openning gear | 500mm |
| Net weight | 4000kg |
| Extemal size | 3130mm×2760mm×2245mm |
