Description

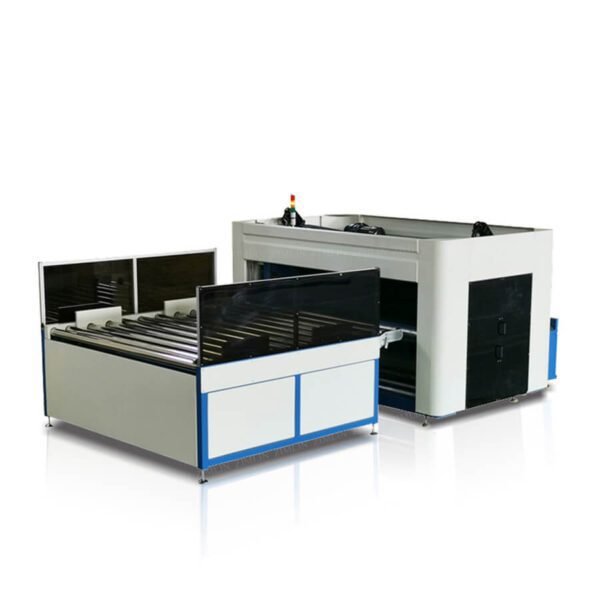

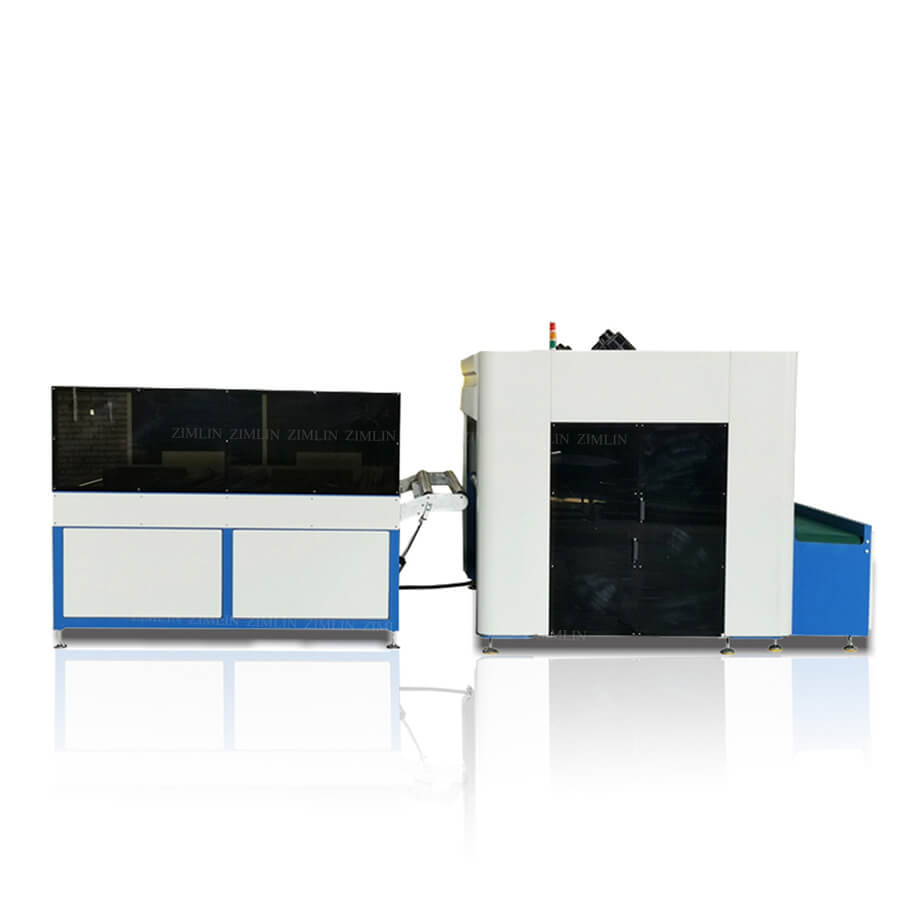

This automatic mattress roll packing machine(adaptive package diameter) mainly used to roll-pack all kinds of mattress. Foam/latex mattress can be directly rolled pack, but noting that spring mattresses need to be compressed first, then roll-pack. This is the newest and most advanced roll-packing machine in “R” series, we generally apply it on the mattress packaging line and combine it into a fully functional packaging line.
Adaptive Package Diameter
Our intelligent roll-pack system will automatically roll-pack out the appropriate size of the package diameter according to the thickness and length of the mattress, and finally form a cylindrical package. In addition, you also can input a reasonable range of caliber values in the PLC control system. Special design makes our system smarter and higher efficiency.
Features
- 1. The whole mattress roll-pack process only need 20 seconds.
- 2. Adopt PLC control system and SIEMENS accessories.
- 3. We will offer a operational video and manual.
- 4. In addition, we accept customization, and optional on-site installation.
- 5. Stable and durable.
If you need to test your products on this machine. Please contact us, We will first time arrange the test for you.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | JK-R3 |
| Packing speed | 20s/mattress |
| Packaging Material | Plastic |
| Voltage | 220V |
| Weight | 5000KG |
| Power | 3.7kw |
| Packaging Type | Film |
| Dimension | 7500*2300*2500mm |
| Warrant | 1 Year |
| Condition | New |
