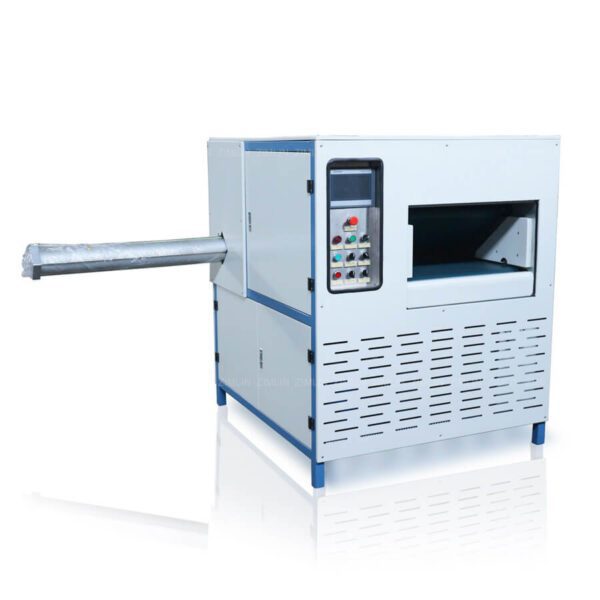

This pillow roll packing machine is special design for the latex/foam pillows. Before packaging, we need to customize PE bags with the same size as the machine exit caliber. Then through mechanical axis rotation rolling and push out to finish packaging.
Pillow in a box is a very popular pillow packaging way for electric commerce and retail. We generally use pillow roll packing machine to roll pack it. Afet roll-packed the pillow able to placed in box to packaged.
This machine with highly automation which replace the traditional technics. Makes the pillow packaging more beautiful and higher productive. The most important that this pillow machine can help you save the high labor costs. In addition, cheap price and simple operation can meet the needs of most modern people, the best assistant for your pillow packaging.
Pillow Roll Packing Machine Features
- 1. Easy to operate, only need one worker to operate.
- 2. High effective 10 Seconds/Pcs.
- 3. Stable and small, so it doesn‘t waste factory space.
- 4. Safe and populared.
- 5. Stable and durable machine with PLC Control system.
- 6. Accept customer made. Besides that, this machine can be connected into packing line.
- 7. Thicker stainless steel as a mechanical structure and paint process.
TECHNICAL PARAMETERS
| Model | JK-PR |
| Conveyor width | 700mm |
| Conveyor speed | 24m/min |

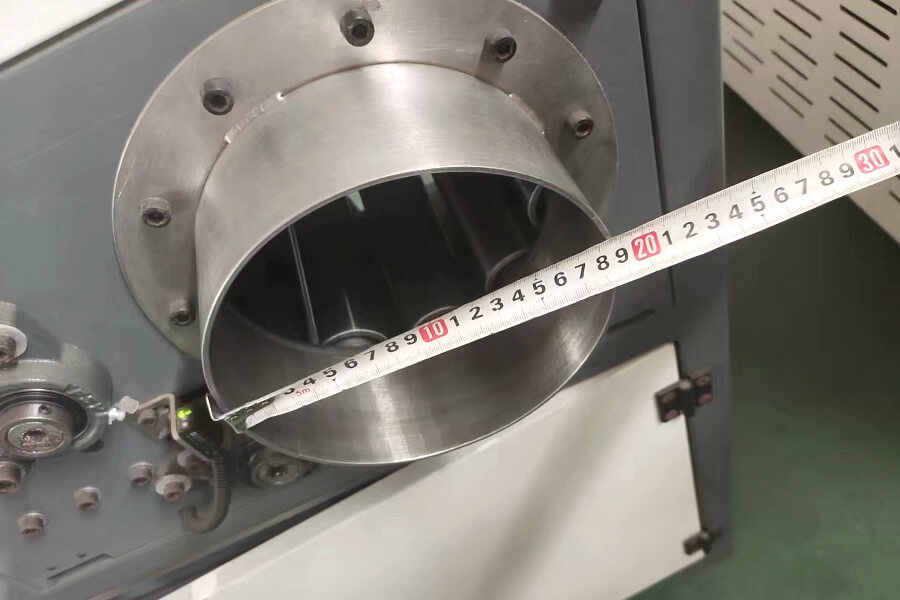

| Exit diameter | 160mm (can adjustable) |
| Pillow rolling size | length≤900mm,width:600mm |
| Total power | 3KW |
| Rolling efficiency | 10pcs/min |
| Voltage | 380V/50HZ |
| Dimensions | 1400*2000*1300mm |
| Weight | 300KG |
