Description
Mattress Net Spring Zoning
Double wire pocket spring machine means our machine at the same time can produce different size steel wire and spring core diameter, that is zoning function. This means that a mattress can exist two different pocket springs simultaneously . The size of the spring wire determines the softness of the spring. This allows for spring zoning based on sleep needs as well as body parts. It greatly improves the comfort of sleep and people also get healthy sleep.

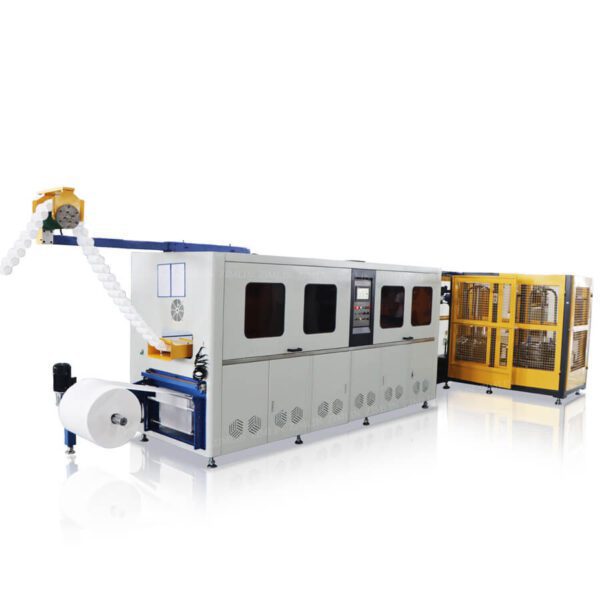

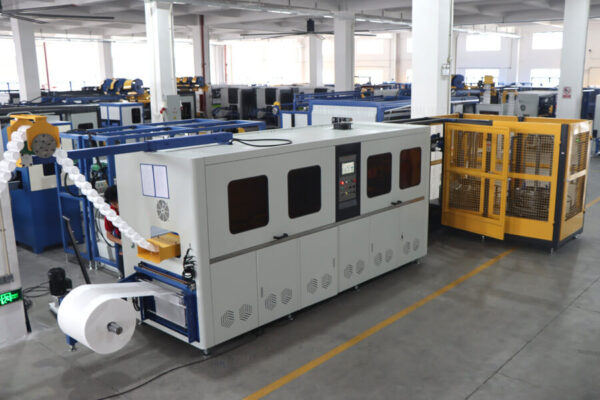

Double Wire Pocket Spring Machine Details
This double wire pocket spring machine normal production speed can reach 160 springs per minute, top production speed can reach 150 springs/min. We are constantly upgrading our machines, and the production efficiency and automation will be higher. It’s new designed base on JK-PS series pocket spring machine. We are more than already 10 years designing, production and using experience.
Finally, we are still need a pocket spring assembly machine to assembling the spring to form mattress network.
Four main advantages
- a. Can achieve mattress net zoning
- b. Touch screen panel
- c. Highly automated
- d. High-intelligent independence invention control system
The Four Main Process
- a. The spring coiling
- b. Heat treatment
- c. Non-woven fabric folding
- d. Ultrasonic welding
Features
- 1. Production speed 160-180 springs/min.
- 2. Missing spring alarm reminder.
- 3. Mechanical failure alarm prompt.
- 4. Spring disorder detection alarm.
- 5. Wireframe will automatic wire speed increase and decrease speed.
- 6. Tight ultrasonic welding.
- 7. High-power cooling device, good spring forming effect.
- 8. Automatic counting in system, record daily production output automatically.
- 9. More intelligent and automation, enter the size parameters of the spring production speed in the control system to achieve fully auto.
- 10 Infrared protection device, when producing we will more safer.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | JK-PS-160D |
| Efficency | 160-180 springs/min |
| Non-Woven Supply | 60-100g/m² |
| Pocket Spring Height | 100-250mm |
| Wire Dia. | Ø1.3mm-Ø2.2mm |
| Spring Core Dia. | Ø55mm-Ø75mm |
| Non-Woven Width | 340mm-680mm |
| Power Supply | 23KW |
| Total Power | 50KW |
| Air Requirement | 0.02 m³/min 0.8 MPa |
| Gross Weight | 4000KG |
| Overall Dimension | 4500mm×2000mm×2000mm |
