Description
Mattress Tape Edge Machine Video
More Details

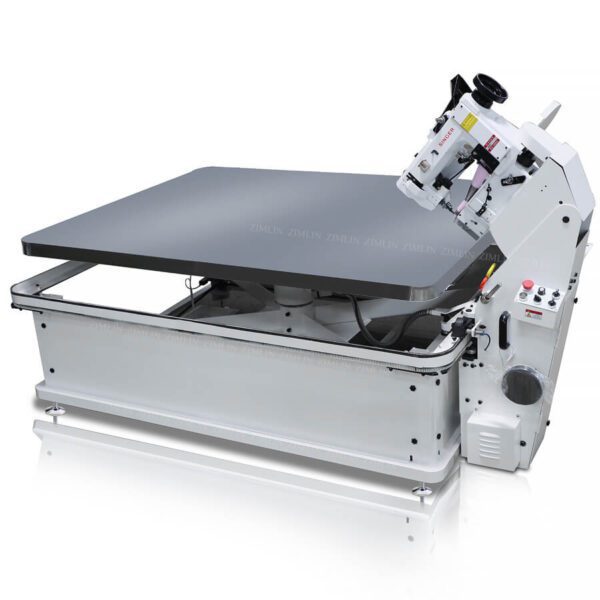

This electronic drive mattress tape edge machine (singer 300u) is mainly used to finish the top and bottom edges sewing of a mattress. Without doubt, It is specially designed for the sewing application of the mattress tape edge mattress, and the strong structure is specially intended for the lasting and efficient operation of the mattress tape edge section.
HIGH PERFORMANCE
Basically, it adopt America Singer 300U chain stitch sewing head, this new mattress tape edge machine also comes with power table lift & power sewing head angle tilt. Not only has Variable-speed drive motor, But also can automatic slow-down for cornering and selectable speed range functions.
In addition, stable performance and easy to operation can meet the needs of most modern people, the best assistant for your mattress edge sewing.
Electronic Drive Mattress Tape Edge Machine (Singer 300U) Features
- Average 16-18 mattresses/hour
- Chiefly, (30mm – 550mm) mattresses sewn with ease
- Singer 300U sewing head
- Rugged steel frame
- Electric drive center column to control table lift
- Power table lift & sewing head tilt
- Auto deceleration at corners
- Sewing speed can be adjusted
- Electrically adjust the sewing head angle
- Max speed up to 3,500rpm
- We not only provide Install video but also detailed install manual
- In addition, we accept customization
TECHNICAL PARAMETERS
| Model | JK-T3 |
| Efficiency | 16-18 mattresses/hour |
| Sewing head | Singer 300U or customize |
| Sewing head tilt maximum angle | 40° |
| Workingtable lifting range | 0-280mm |
| Applicable thickness of mattress | 30mm – 550mm |
| Workingtable size | 1560×1960mm and 1760×1960mm for choice |
| Power | 2-Phase, 220V, 50HZ & 3-Phase, 380V, 50HZ |
| Condition | New |
| Total weight | 600KG |
| Dimensions | 2100 ×1600 ×820mm |
