Description

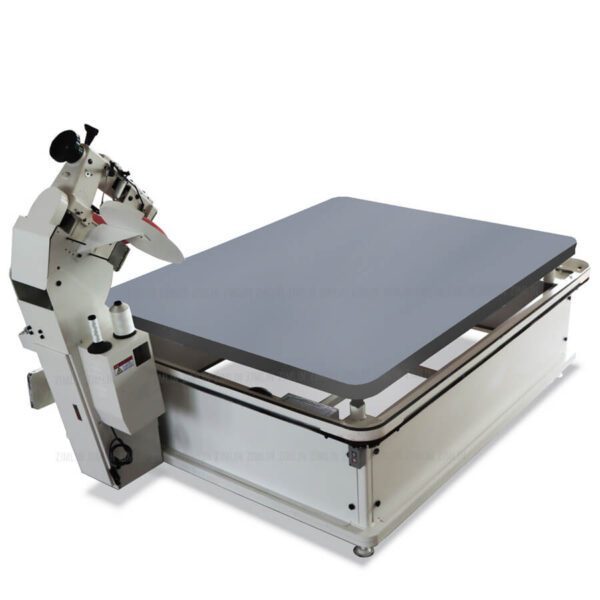

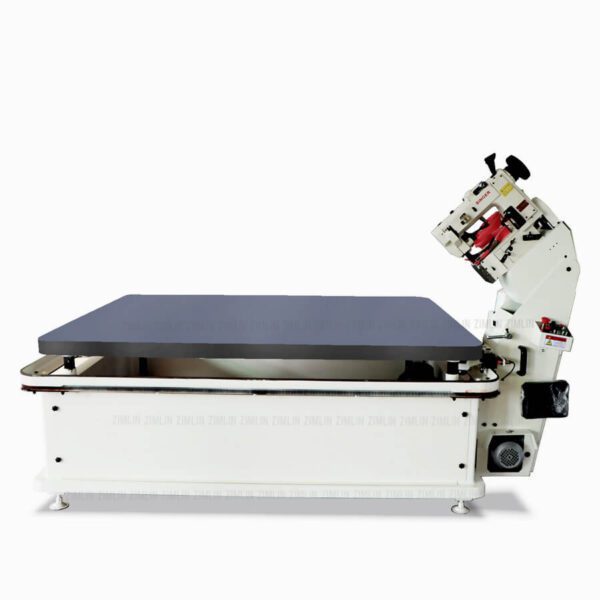

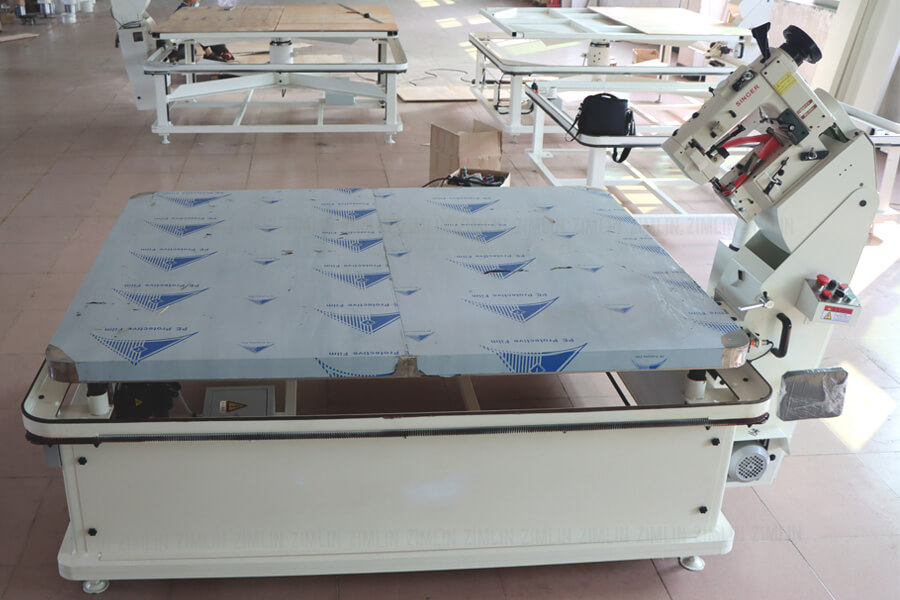

Above all, This electronic drive mattress tape edge machine mainly used for finish top and bottom edges sewing of a mattress. And this machine adopts chain stitch sewing method.
The ergonomically designed control pod enables the operator easier to use. Such as the variable speed drive motor includes automatic deceleration, control for perfect turning and an optional speed range. In addition, cheap price and simple operation can meet the needs of most modern people, the best assistant for your mattress edge sewing.
Chain stitch
This electronic drive mattress tape edge sewing machine adopt chain stitch sewing head. Shortly, chain stitch is a more advanced sewing technique in which a series of looped stitches form a chain like pattern. This is one of the most common sewing methods in modern times. Even if the sewing is wrong or the sewing effect is not satisfying, it can be easily disassembled for resewing by pulling one of the threads . Accordingly, compared with lock stitch, it is more convenient and has more advantages.
Features
- 1. Average 16-18 mattresses/hour

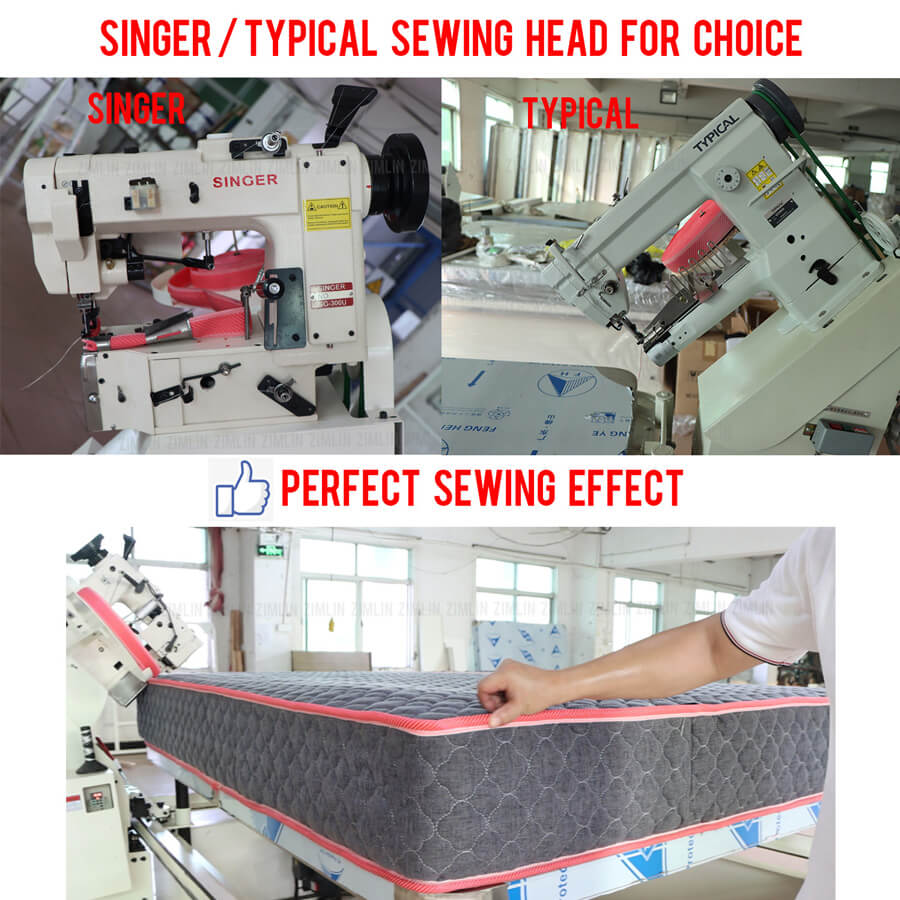

- 2. Singer 300U/Typical sewing head for choice
- 3. Power assisted carriage movement
- 4. Power table lift & sewing head tilt
- 5. Auto deceleration at corners
- 6. Sewing speed can be adjusted
- 7. Electrically adjust the sewing head angle
- 8. Max speed up to 3,500rpm
- 9. We not only provide Install video but also detailed install manual .
- 10. In addition, we accept customization.
TECHNICAL PARAMETERS
| Model | JK-T2 |
| Efficiency | 16-18 mattresses/hour |
| Sewing head tilt maximum angle | 40° |
| Workingtable lifting range | 0-280mm |
| Applicable thickness of mattress | 30mm – 550mm |
| Workingtable size | 1560×1960mm and 1760×1960mm for choice |
| Power | 2-Phase, 220V, 50HZ & 3-Phase, 380V, 50HZ |
| Condition | New |
| Total weight | 480kg |
| Dimensions | 2100 ×1600 ×820mm |
