Description

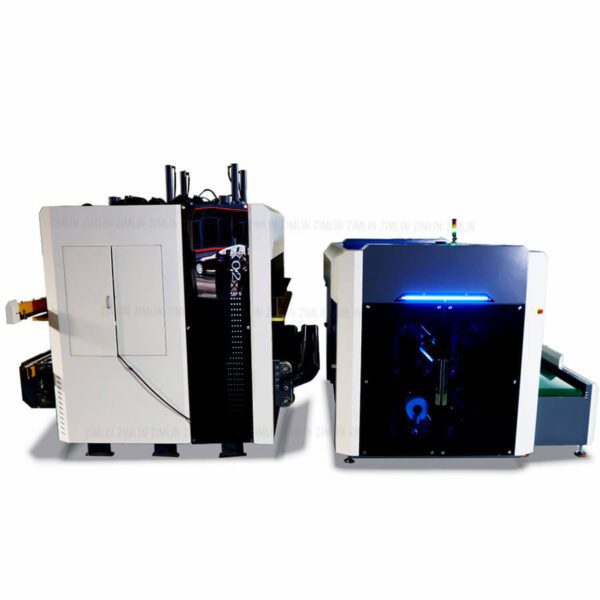

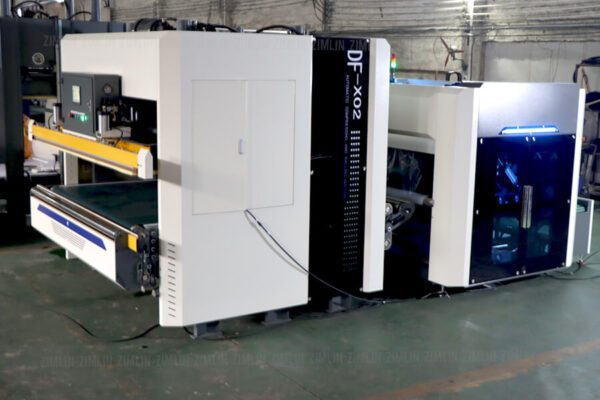

ZIMLIN produce a new automatic mattress compression & packaging machine (adaptive caliber) is suitable for all kinds of mattresses to finish a safe package. Need to manual hand-bagging first, then through compressing, sealing, roll-pack processes. Finally, push out the mattress to shape a cylindrical package. As I have shown, the mattress after packaged we can achieve ‘pack mattress in a box’. Most important it will make the mattress package more beautiful and help you compete in ecommerce marketplace especially.
Mattress Compression & Packaging Machine Application
- 1. Pocket spring mattress
- 2. Bonnell/other spring mattress
- 3. Memory foam mattress
- 4. Latex mattress
- 5. Foam mattress
Heat Seal & Compression
Using heat sealing function after compressing the mattress in the PE film for a safe package.
Roll-Packing
After compress & heat seal the mattress will through the multi axis rotation method mattress roll-pack in the PE bag to shape a cylindrical package.
Adaptive Package Diameter
Our intelligent roll-pack system will automatically roll-pack out the appropriate size of the Package Diameter according to the thickness and length of the mattress, and finally form a cylindrical package. In addition, you also can input a reasonable range of diameter values in the PLC control system. Special design makes our system smarter and higher efficiency.
Features
- a. Adopt PLC and touch screen control system and SIEMENS accessories.
- b. The whole mattress packaging process only need 45 seconds.
- c. Easy to operate, we will offer a operational video and manual.
- d. We provide installation videos & manual.
- e. In addition, we accept custom.
- f. Stable and durable.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | JK-CR1 |
| Effective | 45s/mattress |
| Prewss plate size | 2100×2200mm |
| Max pressure | 50T |
| Nax travel distance | 550mm |
| Mattress size | 2200*2000（100-280mm） |
| Exit diameter | 33CM |
| Foam density | ≥25kgs/m³, ≤45kgs/m³ |
| Total power | 26KW |
| Voltage | AC380V/50HZ |
| Machine weight | 5500kg |
| Machine size | 5800×3400×2800mm |
