Description

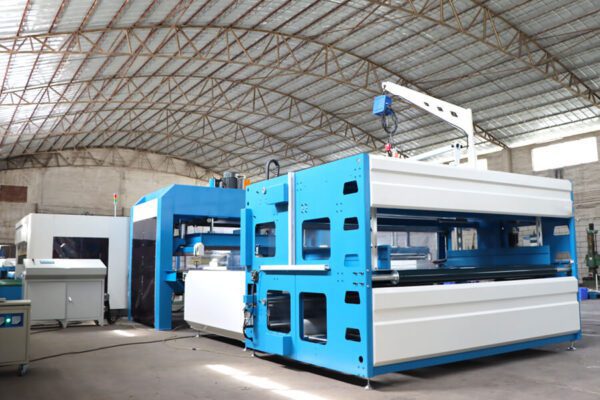

ZIMLIN produce a new mattress auto-bagging compression & packaging machine to pack all kinds of mattress. Such as pocket coil mattress, foam mattress, latex mattress etc. Our machines with various packaging options such as auto-bagging, compress and roll, or compress. And the mattress after packaging we can achieve ‘pack mattress in a box’ into an ideal package for shipping, e-Commerce, & retail.
Auto-Bagging
Cover a PE film to the mattress then heat seal, form a bag to cover the whole mattress.
Compress
50Ton pressure, there is a layer of soft sponge protection under the pressure plate, which can better protect our products during compression.
Seal
After compress the sealing bar will come down, make the mattress into a flat shape. Due to the pressure, the air is squeezed out, and it will remain flat-shape after sealing.
Roll-Packing
After compressing & heat sealing the mattress will through the multi axis rolls method mattress roll-pack in the PE bag to shape a cylindrical package.
Roll-Pack System Adaptive Caliber
Our intelligent roll-pack system will automatically roll-pack out the appropriate size of the package diameter according to the thickness and length of the mattress, and finally form a cylindrical package. In addition, you also can input a reasonable range of caliber values in the PLC control system. Special design makes our system smarter and higher efficiency.
Features
- 1. The whole mattress packaging process only need 40 seconds.
- 2. Adopt PLC and touch screen control system and SIEMENS accessories.
- 3. We provide installation videos & manual.
- 4. Optional on-site installation.
- 5. In addition, We accept customization.
- 6. Stable and durable.
TECHNICAL PARAMETERS
Model | JK-CR3 |
Application | Auto Bagging, Heat Sealing, Mattress Compress, Roll Pack |
Brand | ZIMLIN |
Exit diameter | 240-50mm(can be adjusted) |
Foam density | ≥25kgs/m³,≤45kg/m³ |
Total power | 16KW |
Total weight | 3000KG |
Extemal size | 3300×2600×2900mm |
Working pressure | 120T |
Distance of openning gear | 500m |
Voltage | 380V/50HZ |
