Description

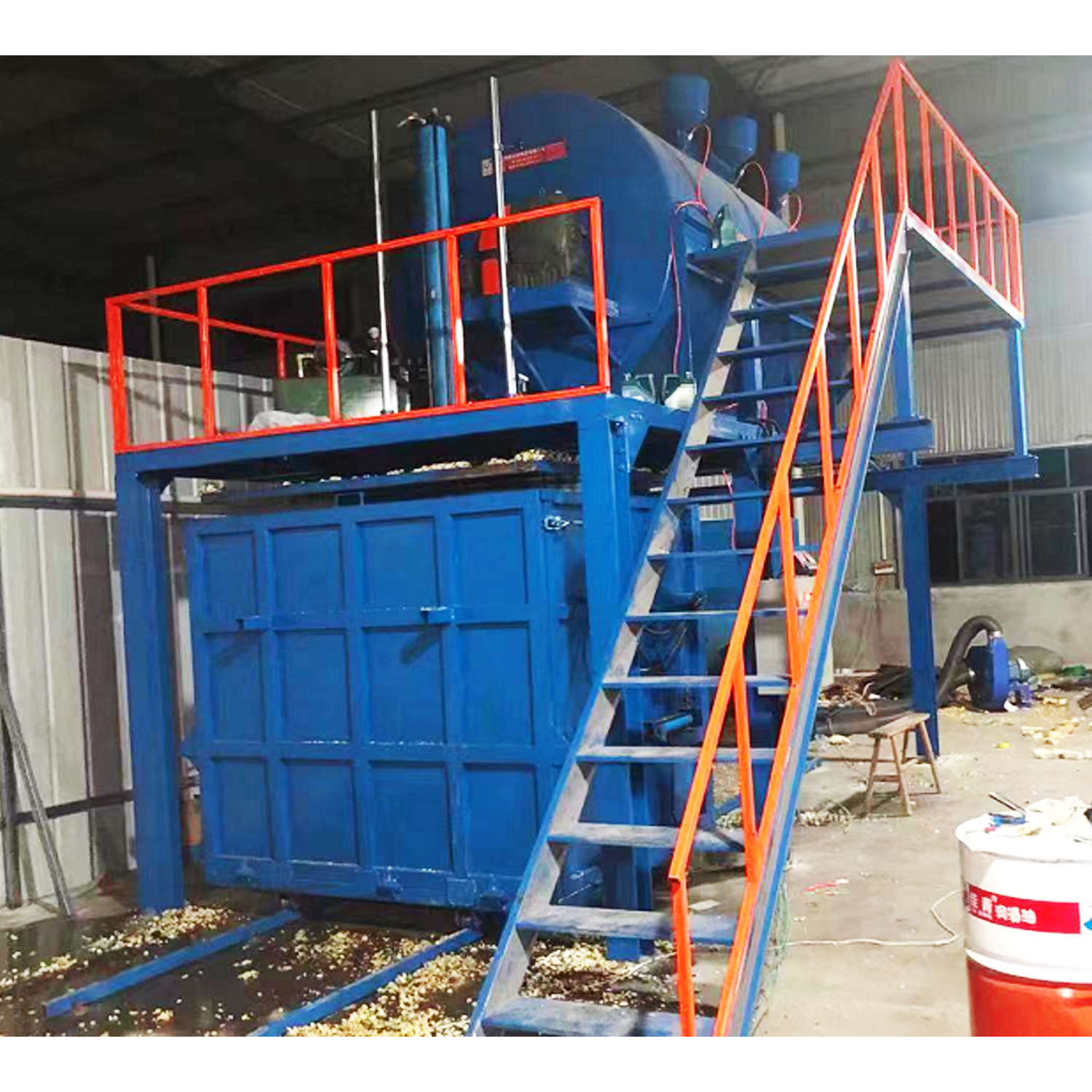

This foam rebonded making machine works with foam shredding machine for sponge producing. Mainly application in foam/sponge/furniture/sofa industry. When we have some left materials in the production process that cannot be treated, we can use them together with the crusher to turn the waste materials into usable sponge materials for reusing. In other words, it’s also a recycling machine.
The machine has a complete production line of stirring, stirring and pressing, with high production efficiency. The newly developed die of automatic steaming device increases the production efficiency by 5 times. Rebonded blocks can process into numerous end products. It is not difficult to say that the machine also includes an electric control panel with a built-in weight display and metering system to control the amount of chemical and steam.
Foam Rebonding Machine Work Materials
Doam scraps, To avoid waste, these materials can re-use through this recycling.
Advantages
Save cost; The foam scraps mix with liquid polyurethane to bind them and then compressed into a block. It has an open-cell structure and is famous as it’s firm and durable properties.
FEATURES
- 1. Easy operation
- 2. Widely application
- 3. The machine is novel in design, beautiful in appearance, compact and reasonable in structure, simple and generous.
TECHNICAL PARAMETERS
Mixing Tank Capacity | 10CBM |
Output | 30~45Blocks/day 20~45 unit/day |
Mixing Speed | 0~30rpm |
Mixing Motor Power | 5.5kw |
Oil Hydraulic Pressure | 12 Ton |
Re-bonded Foam Density Range | 0~120kg/CBM |

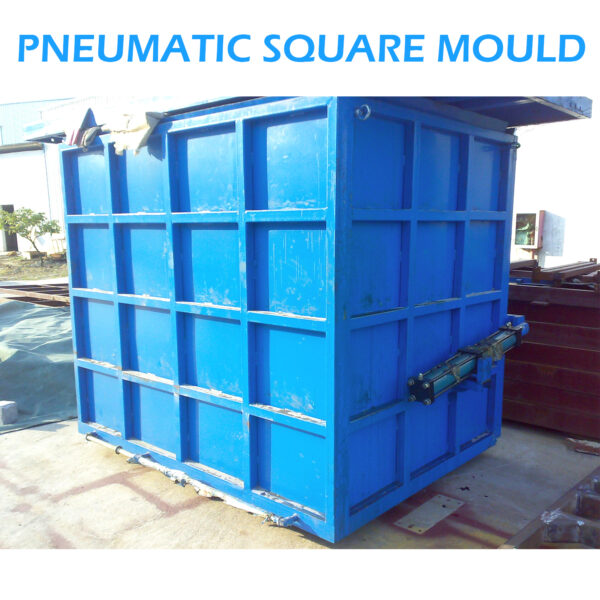

One Pneumatic Square Mould Size | L2050mm*W1550mm*H1000mm(To Be Reuqested) |
Option Of Materials Loading System | Storage Tanks:80kg*pc,Match With Chinese Pump For Materials Loading.(Choose Available) |
Option Of Weighing System | Weighing System.(Choose Available) |

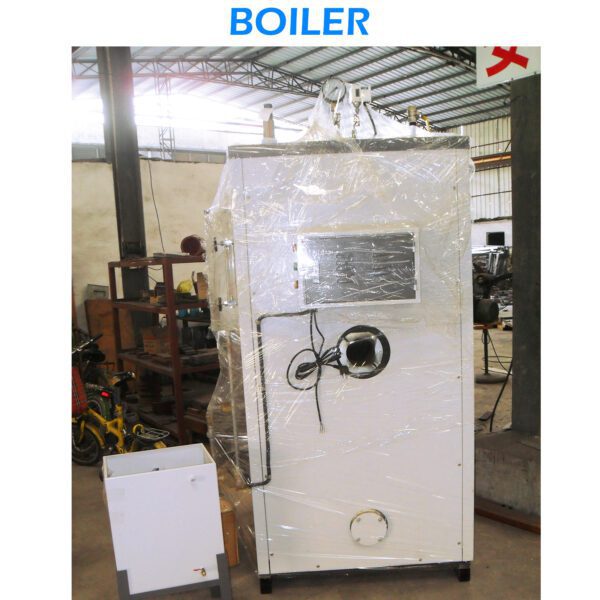

Option Of Boiler System | Boiler System.(Choose Available) |
Control Type | Automatic Electric Control |
Machine N.W | 5000kg |
Total Motor Power | 12kw |
Floor Space | L8000mm*W4000mm*H5200mm |
