Description
Revolutionize your foam cutting processes with our state-of-the-art horizontal cutting machine. Designed for cutting and stacking of PU foam, this machine is a game-changer in the foam processing industry. Its unique features and cutting-edge technology redefine precision, efficiency, and convenience.
Advanced Cutting Technology

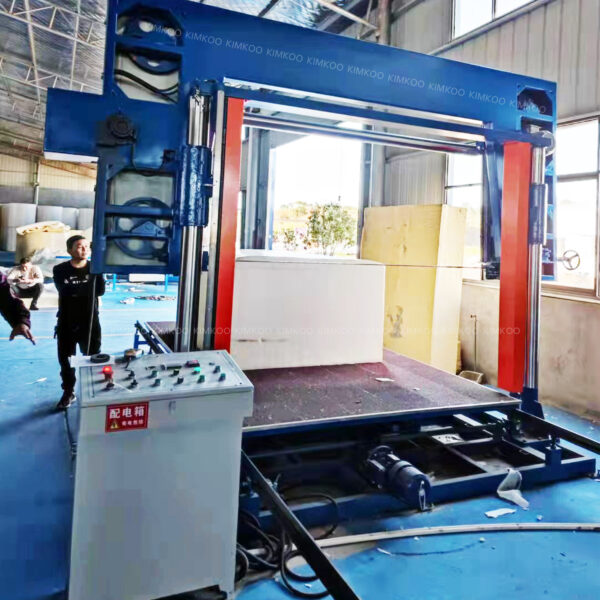

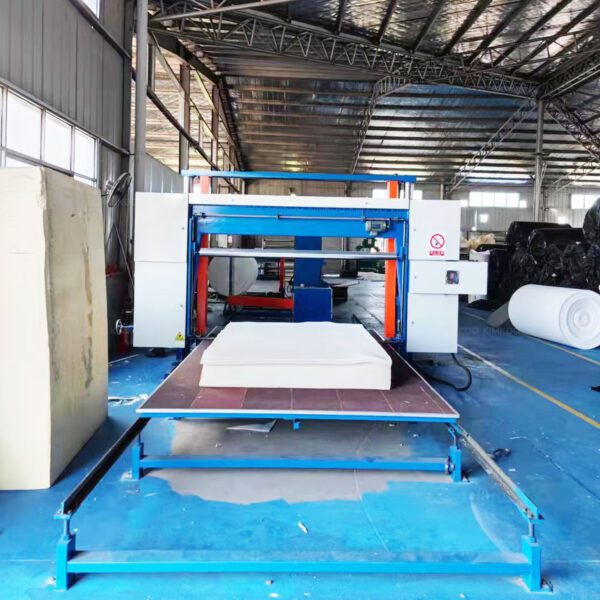

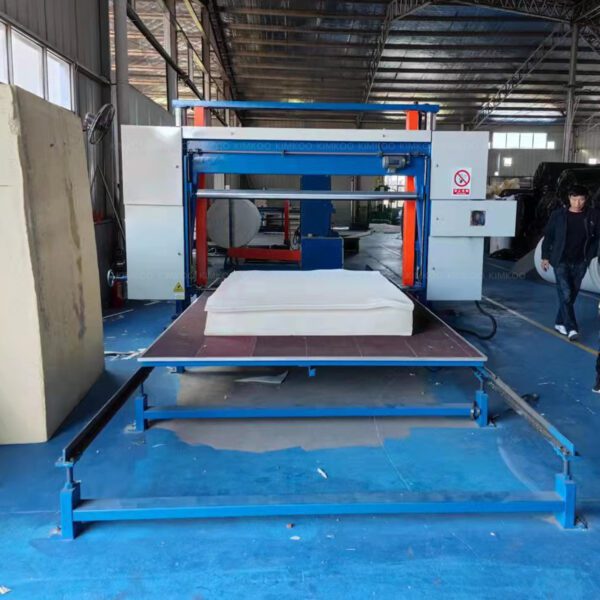

The Horizontal Cutting Machine is engineered for the seamless cutting and stacking of various materials, including flexible foam and open-celled P.V.C. foam. What sets it apart is its ability to cut without the need to remove the foam slice from the working table after each cut. This feature enhances workflow efficiency and saves valuable time during the cutting process.
Versatility in Cutting Thickness
Equipped with a Press-Roller, this machine is ideal for High Thickness Sheets Cutting for Foam Mattress use. The cutting angle of the knife guidance is adjustable, ranging from 0º to 5º. This adaptability ensures precise and customizable cuts based on the thickness and density of the foam.
Efficient Foam Processing
The Horizontal Cutting Machine excels in cutting foam blocks, PU, PE, PVC, and other soft materials. The cut foam size can reach 200030001200mm, and the cutting thickness can start from 2mm up. The blade size of 10160300.45mm guarantees accuracy and consistency in every cut.
Horizontal Foam Cutting Machine Features
- 1. Motorized blade angle adjustment.
- 2. Motorized pressure roller.
- 3. The band knife has a razor-sharp edge that ensures optimum accuracy.
- 4. Plc controlled servo motor for up/down of main blade frame.
- 5. Touch screen display.
- 6. The band knife adjustment is likewise automated.
Advanced Control and Quality Components: The Horizontal Cutting Machine boasts a robust control system with a Taiwan Delta brand inverter and PLC automatic control. It features French Schneider buttons and contactors, Japanese Omron rotary encoder, and a Korean counter. This ensures not only precision in cutting but also the durability and reliability of the machine.
Adjustable Cutting Speed: With an adjustable cutting speed, the Horizontal Cutting Machine puts you in control, allowing you to tailor the cutting process to your specific requirements.
Elevate Your Foam Processing: Experience the future of foam cutting with the Horizontal Cutting Machine. Combining versatility, precision, and efficiency, this machine is your key to advancing your foam processing capabilities. Elevate your production standards and streamline your workflow with this cutting-edge solution.
| TECHNICAL PARAMETERS | |||
|---|---|---|---|
| 1650 TYPE | 2150 TYPE | ||
| Cutting Foam Size | W1650mm*L2000mm | Cutting Foam Size | W2150mm*L3000mm |
| Cutting Foam Height | 1200mm | Cutting Foam Height | 1200mm |
| Cutting Speed | 0～30m/min(Adjustable) | Cutting Speed | 0～30m/min(Adjustable) |
| Blade Length | L9160mm*W30mm*T0.45mm | Blade Length | L10160mm*W30mm*T0.45mm |
| Cutting Type | Automatic & With Press- Roller | Cutting Type | Automatic & With Press- Roller |
| Touch sreen System | Choose Available | Touch sreen System | Choose Available |
| Vacuum System | Choose Available | Vacuum System | Choose Available |
| Machine N.W. | 2100kg | Machine N.W. | 2300kg |
| Total Motor Power | 8.5kw | Total Motor Power | 8.5kw |
| Floor Space | L5800*W3600*H2500mm | Floor Space | L7800*W4500*H2500mm |
| Cutting Thickness | 2mm up | Cutting Thickness | 2mm up |
